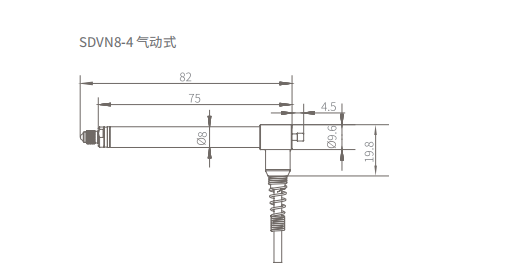

SDVN8-4 Gaging Probe

SS304 construction, Explosion proof character and it can be used in etrochemical and natrual gas industry Combustible and explosive environment.

Features:
1, SS304 construction, Explosion proof
2, DC operated, internal signal conditioner within
3, 3-wire voltage output 0-5V or 0-10V
2-wire current output 4-20mA
4, Ranging from 0mm to 15mm, high resolution and repeatability
5, Contactless, Long lifespan

Applications:
1.Building Materials Processing Quality Inspection

2. Cylinder Displacement Detection & Control

3. Float Glass Production Line Inspection

4. Metal Machining & Processing Inspection

Specification:

Input Power	9 ~28V DC
Operating Current	Current of voltage output ≤12mA
	2-wire current output of 4~20mA Output of 4~20mAA
Range of displacement	0-15mm
Output Signal	0～5V (9 ~28V DC Input )
	0 ~10V (15 ~28V DC Input )
	4 ~20mA (2-wire, 15 ~28V DC Input )
	Digital Output RS485 (9 ~12V DC Input )
Linearity Error	Analog Output 0.25%, 0.5% O ptional Digital Out:put 0.25%,0.1% etc. Optional
Repeatability Error	≤0.01% of F.S.
Resolution	≤0.1um(Max)，Digital Output16 bit
Dynamical property	Standard 50Hz（Option）
Operating temperature	-77℉~185℉(-25℃ ~ +85℃)
Thermal coefficient	Null Position ≤0.01%F.S./ ℃
	Sensitivity≤0.025% F.S./ ℃
