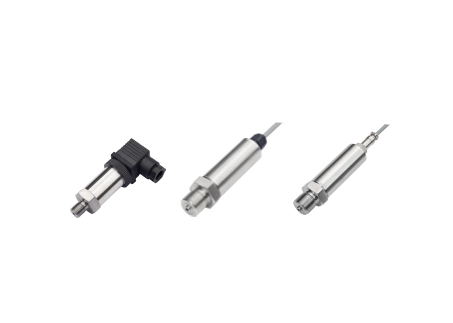

SYP210 & SYP240 Standard Pressure Sensor Series

Introduction:

SYP series pressure sensors adopt metal strain gauge or semiconductor strain gauge to stick on the specific surface of the elastic element. When the physical quantities such as force, torque, speed, acceleration and flux, etc. are applied to the elastic element, it will lead to the change of the stress and strain of the element, and then result in the change of the strain gauge resistance. The change of resistance will be converted into electrical signal  output after being processed by circuit, that is the  working principle of resistance strain sensor. The  SYP series pressure sensor adopts high precision  pressure sensor component and converts the output  millivolt signal generated by sensor subject into  pressure, standard current or voltage output signal  through the built-in circuit. All-stainless steel integrated welding process is adopted in the structure to ensure the long-term stable operation of the products under severe working conditions.

Feature:

1. Ultra-low temperature resilience: Stable operation at -40°C

2. Comprehensive performance:

• Wide measurement range (0-5000psi standard)

• RFI-resistant design with stable signal output

3. Enhanced durability:

• 4x overload capacity

• Triple protection: Vibration-resistant | Shock-resistant | Lightning-proof

4. Modular configuration:

• Multiple sensor head options available

• Environment适应性:
  • High/low temperature (-40°C~+85°C)
  • Corrosion-resistant housing (IP68 standard)
  • Waterproof design (NEMA 4X certification)

Parameters:

Dimensions:

Wiring method:

Voltage type wiring method:

Switch type wiring method:

Installation:
